WT-40 ASTM F1043, Group 1C

Commercial, Industrial and High Security Fence Framework
Wheatland Tube's WT-40 fence framework is made from cold-rolled steel for commercial, industrial and high-security applications. It's the only American-made product that meets ASTM F1043 requirements.
Download specifications
Share

When a Minimum Yield Strength of 50,000 psi Is Needed

Proudly displaying “WT-40 MADE IN USA” on every piece, Wheatland’s WT-40 lives up to its high-strength reputation. As certified by independent testing agencies, its strength and corrosion resistance have been found in full compliance with ASTM F1043 1C requirements, AASHTO M181, and all applicable local, state and federal specifications.

Trade sizes: 1⅝−4

(6⅝ and 8⅝ full-weight Schedule 40 per ASTM F1083 is available for terminal post applications)

DISTRIBUTORS

With Z-Commerce™, see how much inventory is in our warehouse today, how much will be added soon, and our future plans for availability.
Get started

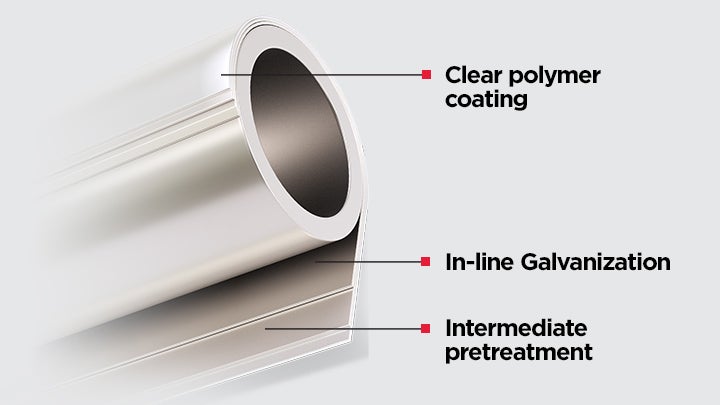

Layered Corrosion Protection

Wheatland’s WT-40 features layered protection for long-term performance. The interior is sealed with a 90% zinc-rich coating, and its exterior bathed in continuous in-line galvanized coating. Over that is an intermediate conversion coating to inhibit white rust; and topping it all: a clear polymer coating to seal in protection and provide a smooth, lustrous finish.

Recycled Steel Content

The steel used to produce Wheatland’s fence framework contains recycled steel, which is the most recycled material in the world. The tube products manufactured by Wheatland Tube are produced from 25% to 85% recycled steel, depending on the steel producer — which can help building owners and developers obtain LEED certification.

Download our LEED letter

FOR DISTRIBUTORS

See how we MAKE IT eZ for you to work with us to meet your customers’ needs.
LEARN MORE

FOR CONTRACTORS

Get complete details about our ASTM F1043 (WT-40) fence framework.
DOWNLOAD SUBMITTAL SHEET

RESOURCES

See all of our Heavy Duty ASTM F1043 resources.
START BROWSING
